How To Use Conditional Formatting in Excel

Alan Murray

Conditional Formatting is one of the most requested features of Excel. It brings your attention to what matters on a spreadsheet. Your analysis and reports are more compelling with Conditional Formatting.

With Conditional Formatting, you can format cells or display icons depending on the cell value’s performance against a rule.

In this tutorial, you will learn how to apply Conditional Formatting rules to text and number values. We will also look at using the data bars and icon sets features of Conditional Formatting.

Here’s what we’ll cover:

  1. Format based on the text value
  2. Conditional Formatting with number values
  3. Manage Conditional Formatting rules
  4. Using Data Bars to measure performance
  5. Conditional Formatting for KPI performance

Use this Excel workbook to practise.

1. Format based on the text value

For our first example of setting up a Conditional Formatting rule, we have a list of tasks and their current status. The status is either “Not Started,” “In Progress,” or “Complete.”

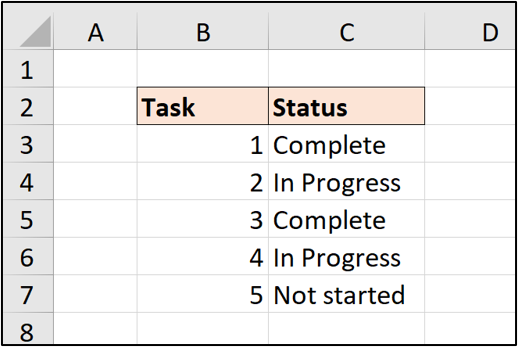

An Excel worksheet with two columns of data: Task (with numbers 1, 2, 3, 4 and 5) and Status (Complete, In Progress, Not Started)

We would like to automatically format the cells when the task status is set to “Complete.”

1. Select the range C3:C7.

2. Click Home > Conditional Formatting > Highlight Cells Rules > Equal To.

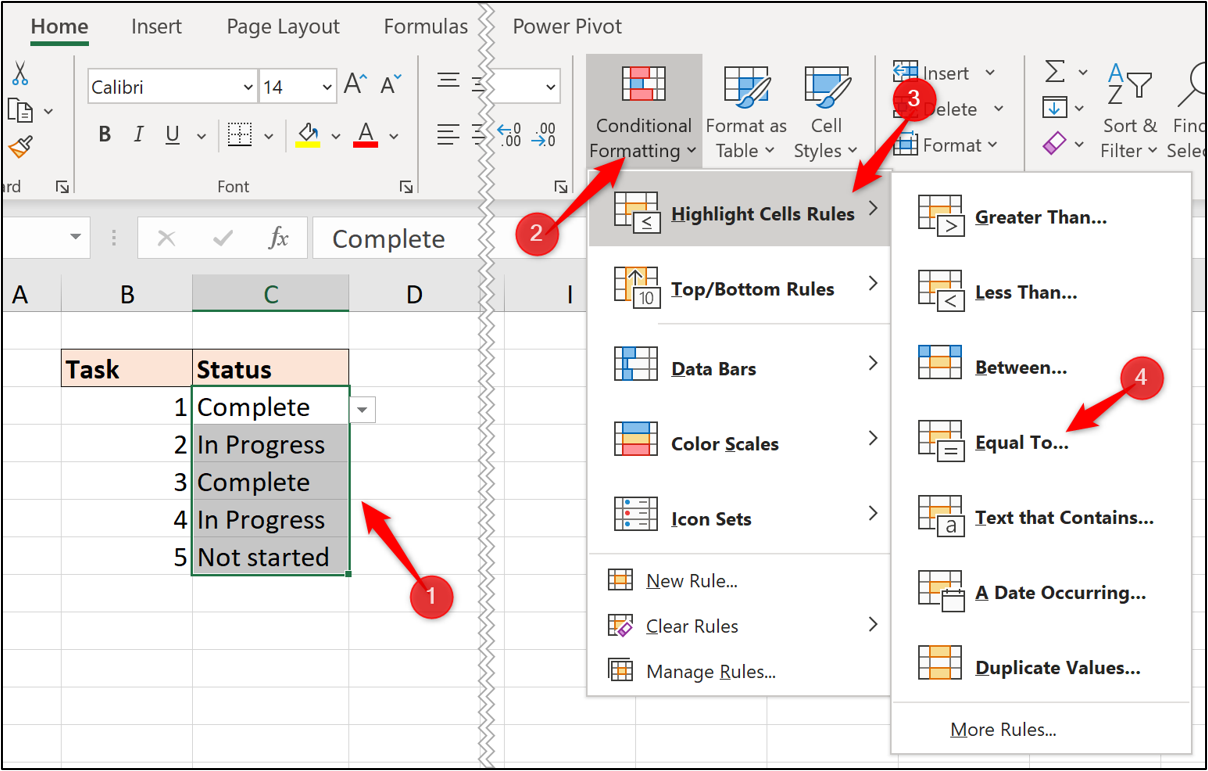

An Excel worksheet showing the process for applying conditional formatting. 1: Click on the home icon, 2: Click on the conditional formatting icon, 3: Select “Highlight cells rules” from the dropdown, and 4: Select “equal to”

3. Enter “Complete” into the box provided and specify the format you want to apply. Click OK.

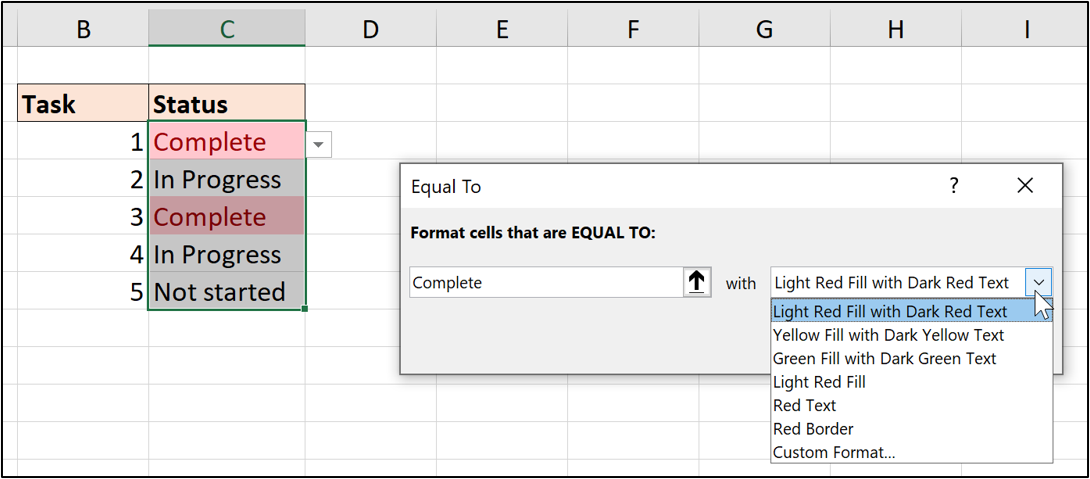

An Excel worksheet with two columns of data: Task number and status (complete, in progress, or not started). In this example, conditional formatting is being applied so that all tasks with the status “complete” will be formatted with a light red fill and dark red text.

In this example, I have opted for a green fill color.

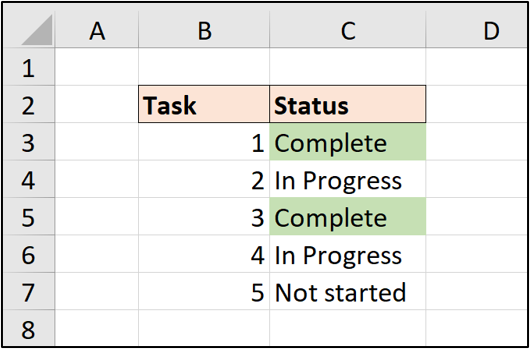

An Excel spreadsheet with two columns of data: Task number and status (in progress, complete, or not started). In this example, all tasks with the status "complete" have been formatted with a light green fill.

When a cell value is changed, the format is automatically applied or removed.

2. Conditional Formatting with number values

Let’s now look at an example of setting up Conditional Formatting rules for number values.

In this example, we have a list of product sales and we will create two rules. One rule to format values that are greater than or equal to 2500 in green, and a second rule to format values between 1500 and 2499 in orange.

1. Select the range C3:C8.

2. Click Home > Conditional Formatting > Highlight Cells Rules.

3. There is not an option for greater than or equal to, so click More Rules.

4. Select “greater than or equal to” from the list and enter 2500 for the value. Click Format and choose the format you want to apply.

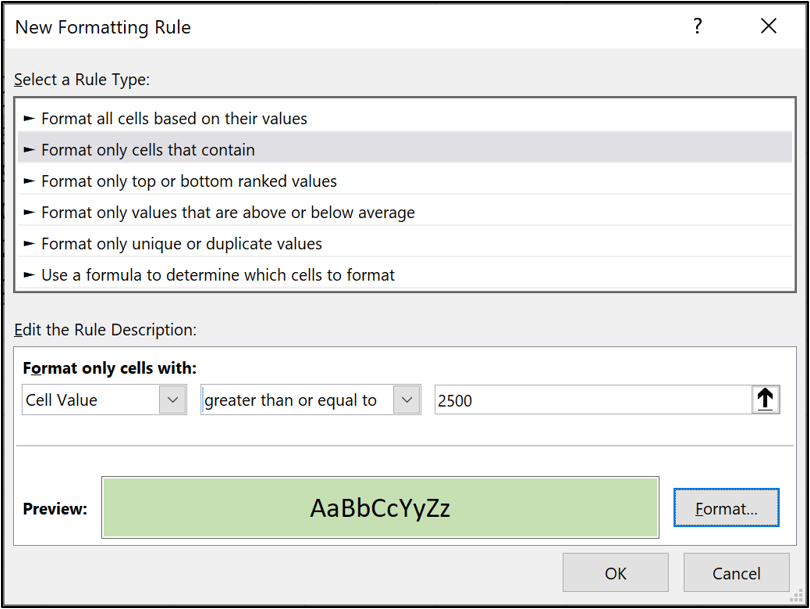

The pop-out window in Excel used to set a formatting rule. In this example, cell values greater than or equal to 2500 are formatted in light green.

The first rule is applied. Two values meet this criteria and are formatted.

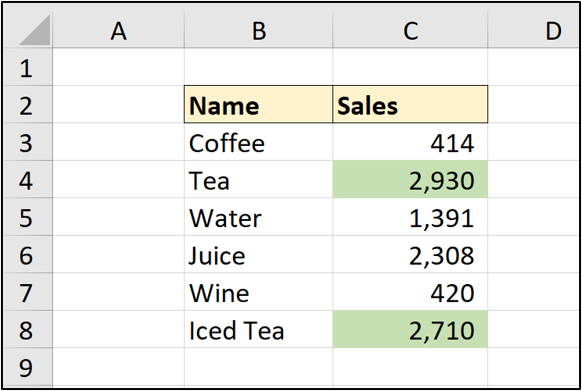

An Excel spreadsheet with two columns of data: Beverage type (tea, coffee, etc) and number of sales. In this example, sales values greater than 2500 have been highlighted in light green.

You can create and apply as many Conditional Formatting rules to a range as you need, although you probably do not want more than three or four.

5. Select range C3:C8, and click Home > Conditional Formatting > Highlight Cells Rules > Between.

6. Type 1500 in the first box, type 2499 in the second box, and then select the format you want to apply.

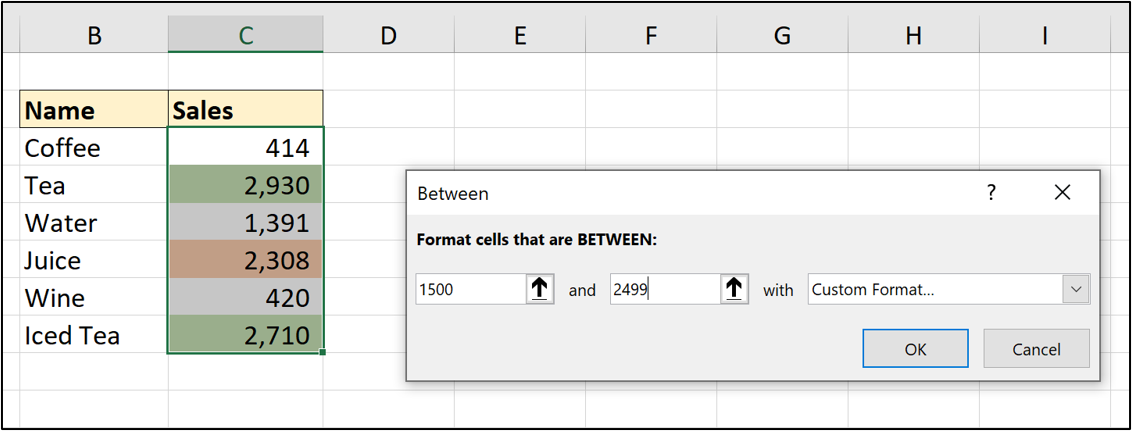

An Excel spreadsheet with two columns of data pertaining to beverage name and number of sales per beverage. In this example, the conditional formatting function is used to format values that fall between 1500 and 2499

Both rules are now applied to the range.

3. Manage Conditional Formatting rules

Excel makes it very easy to find, edit and delete your existing Conditional Rules.

1. Click any cell within the formatted range.

2. Click Home > Conditional Formatting > Manage Rules.

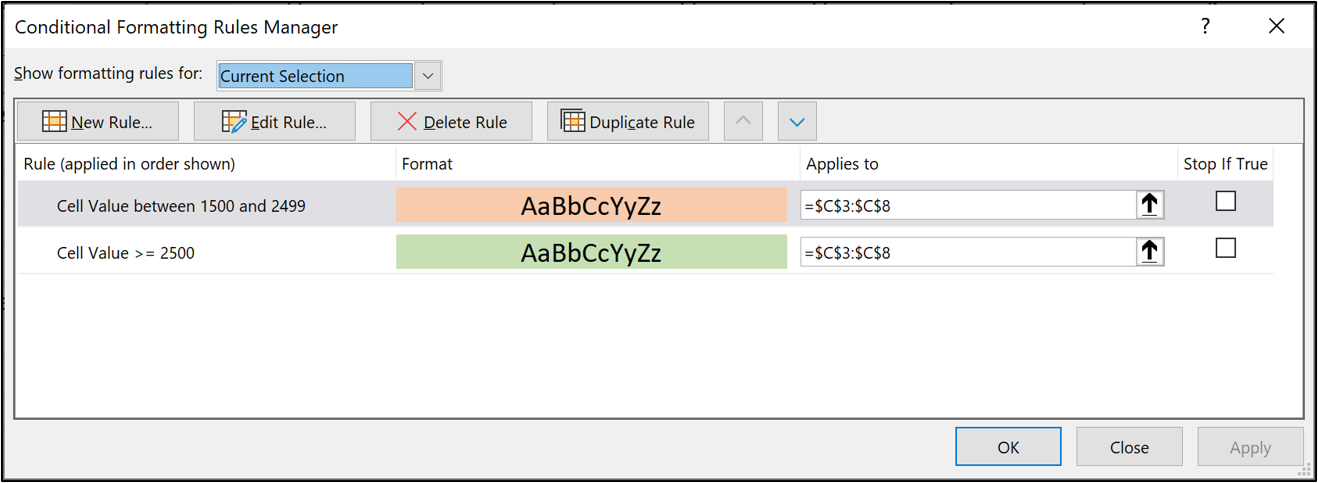

The conditional formatting rules manager window in Microsoft Excel

There is a lot of information and functionality in the Conditional Formatting Rules Manager window. Let’s explore the different elements of the window.

  • The “Show formatting rules for” list defaults to “Current Selection.” We can see both rules because we clicked a cell within the formatted range.

This list can be changed to view all the rules for a specific sheet. This is very useful for finding the Conditional Formatting rules on a sheet.

  • The rules are listed with columns showing the rule, format, and range that it applies to.

  • There are buttons to create, edit, delete and duplicate rules.

  • The two up/down arrows next to the buttons are used to change the order of the rules. If more than one rule is True, both formats are applied with the rule highest in the list applied last.

4. Using Data Bars to measure performance

Data bars are very useful for comparing values against each other and also measuring progress.

In this example, we have some sales values and want a visual indicator to their performance.

1. Select range C3:C8.

2. Click Home > Conditional Formatting > Data Bars.

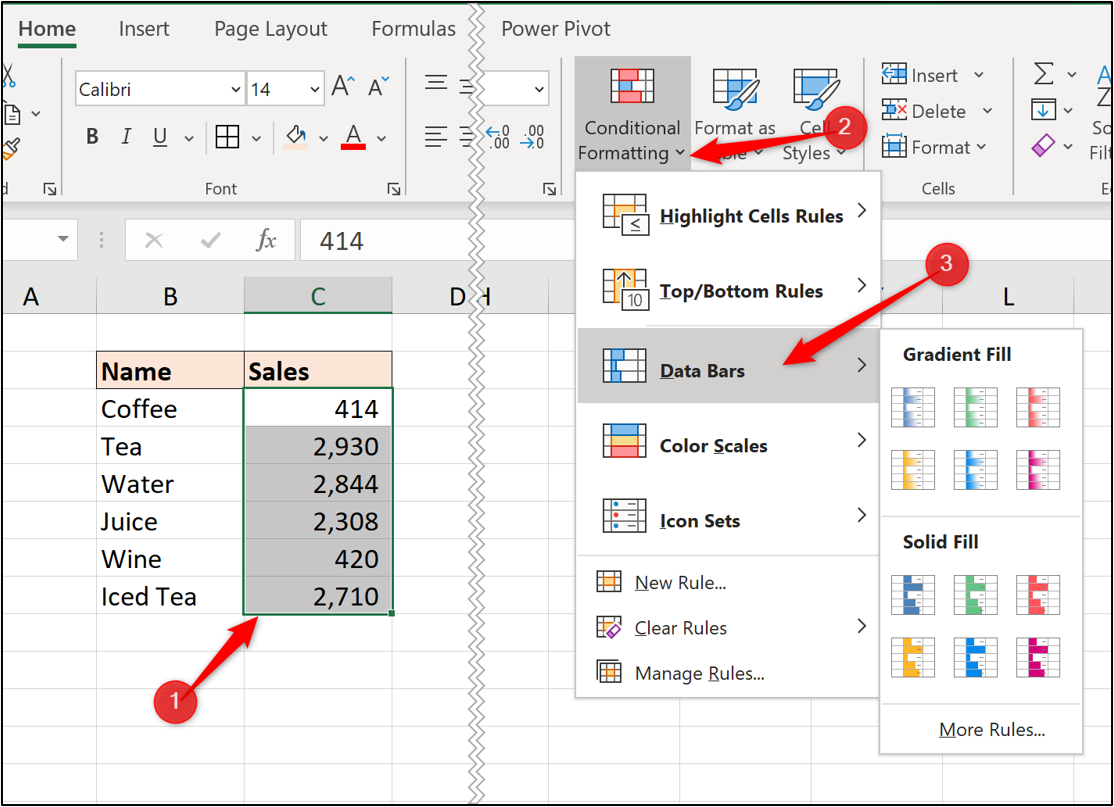

An Excel worksheet with two columns of data. The column containing sales figures has been selected (range C3 to C8). “Data bars” has been selected from the conditional formatting dropdown menu.

3. There is the selection from six different gradients and six different solid fill colors. Click More Rules to see more options.

4. There are a few options in here to customize your data bar. I have opted for a lighter blue than the colors offered by default. This is because I want to see the number behind the color. Click Ok.

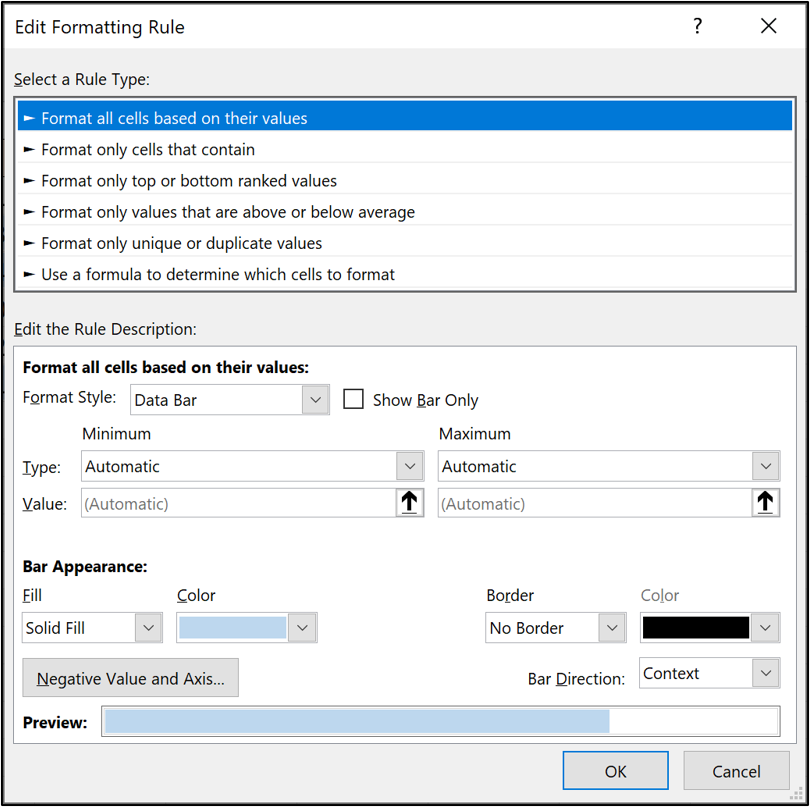

The "Edit formatting rule" window in Microsoft Excel used to apply different formatting rules to data bars.

The data bar is applied to the selected range.

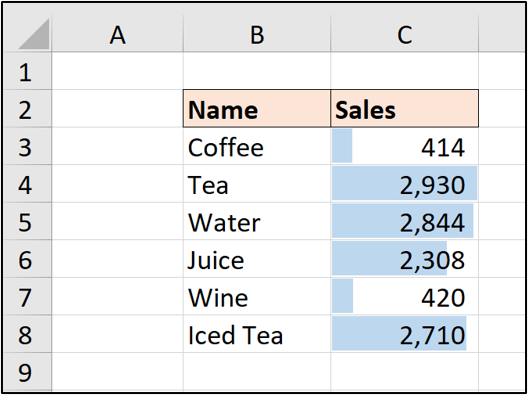

An Excel spreadsheet with two columns of data: Beverage name, and number of sales per beverage. Data bars have been applied to compare the performance of each beverage in terms of sales.

The bar covers the entire cell for the maximum value. This is how the automatic axis works that is applied by default. You can edit this to specify custom minimum and maximum values for the bar axis.

5. Conditional Formatting for KPI performance

The icon sets feature of Conditional Formatting offers a variety of different icons such as up/down arrows, stars and traffic lights. These icons can be applied when a rule is met and offer a nice alternative font and cell formatting.

In this example, we will display an icon in cell B3 if the value is greater than or equal to 45%.

1. Select cell B3.

2. Click Home > Conditional Formatting > New Rule.

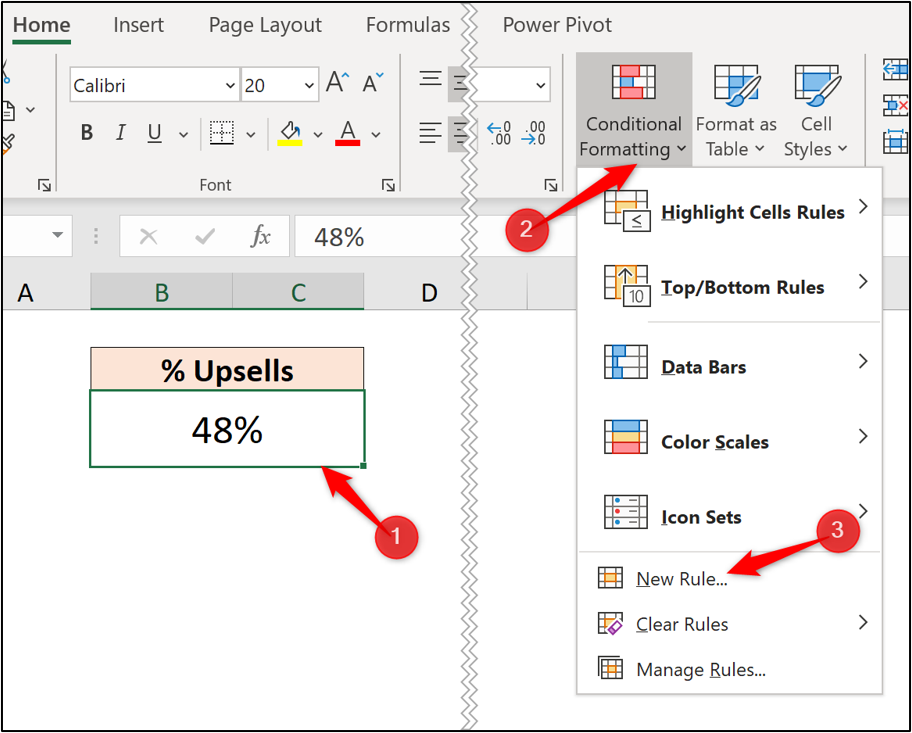

An Excel worksheet with a cell highlighted. The "new rule" option has been selected from the "conditional formatting" dropdown.

3. Click the “Format Style” list arrow and select Icon Sets.

4. Click the “Icon Style” list arrow and choose the icons you want to apply.

5. Change both “Type”options to Number, enter “0.45” for both values and change the second icon to No Cell Icon. Click Ok.

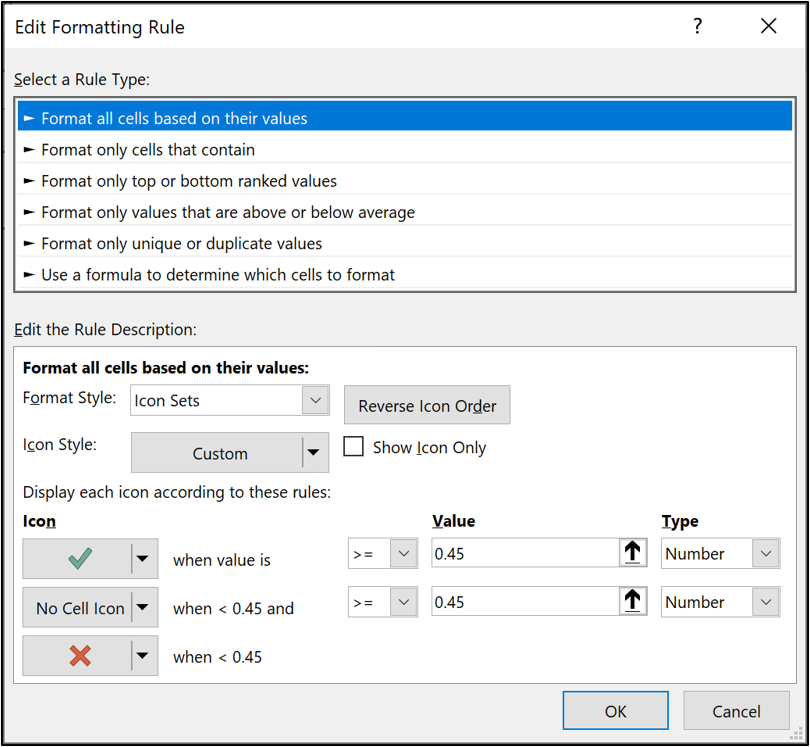

The "Edit formatting rule" window in Microsoft Excel used to apply different formatting rules. In this example, the “format all cells based on their values” option has been selected.

The rule is applied to the cell. A green tick mark is shown if the value is 45% or higher, otherwise the red cross is shown.

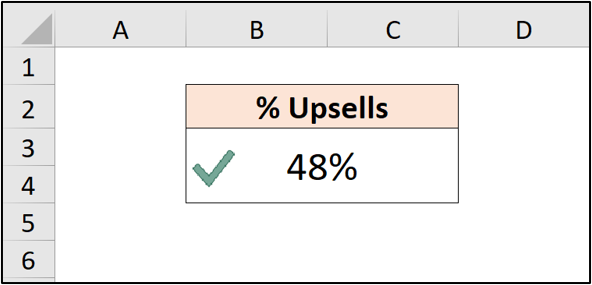

An Excel spreadsheet with a single cell of data with a green tick next to it.

Final thoughts

I hope this has been a nice introduction to Conditional Formatting in Excel. There is much more it can do, especially when you use formulas for the rule.

If you’re getting to grips with Excel in your quest to become a data analyst, you can try a free data analytics short course here. Keen to learn more Excel functions? Check out the following:
