What Is a Decision Tree and How Is It Used?

Will Hillier

Costs. Benefits. Probabilities. For data analysts (or just human beings!) these concepts are key to our daily decision-making. Realize it or not, you’re constantly weighing up each one; from deciding which brand of detergent to buy, to the best plan of action for your business. For those working in data analytics and machine learning, we can formalize this thinking process into an algorithm known as a ‘decision tree.’

But what exactly is a decision tree? This post provides a short introduction to the concept of decision trees, how they work, and how you can use them to sort complex data in a logical, visual way. Whether you’re a newly-qualified data analyst or just curious about the field, by the end of this post you should be well-placed to explore the concept in more depth.

We’ll cover the following:

  1. What is a decision tree?
  2. What are the different parts of a decision tree?
  3. An example of a simple decision tree
  4. Pros and cons of decision trees
  5. What are decision trees used for?
  6. Decision trees in summary

1. What is a decision tree?

In its simplest form, a decision tree is a type of flowchart that shows a clear pathway to a decision. In terms of data analytics, it is a type of algorithm that includes conditional ‘control’ statements to classify data. A decision tree starts at a single point (or ‘node’) which then branches (or ‘splits’) in two or more directions. Each branch offers different possible outcomes, incorporating a variety of decisions and chance events until a final outcome is achieved. When shown visually, their appearance is tree-like…hence the name!

Decision trees are extremely useful for data analytics and machine learning because they break down complex data into more manageable parts. They’re often used in these fields for prediction analysis, data classification, and regression. Don’t worry if this all sounds a bit abstract—we’ll provide some examples below to help clear things up. First though, let’s look at the different aspects that make up a decision tree.

2. What are the different parts of a decision tree?

Decision trees can deal with complex data, which is part of what makes them useful. However, this doesn’t mean that they are difficult to understand. At their core, all decision trees ultimately consist of just three key parts, or ‘nodes’:

  • Decision nodes: Representing a decision (typically shown with a square)
  • Chance nodes: Representing probability or uncertainty (typically denoted by a circle)
  • End nodes: Representing an outcome (typically shown with a triangle)

Connecting these different nodes are what we call ‘branches’. Nodes and branches can be used over and over again in any number of combinations to create trees of various complexity. Let’s see how these parts look before we add any data.

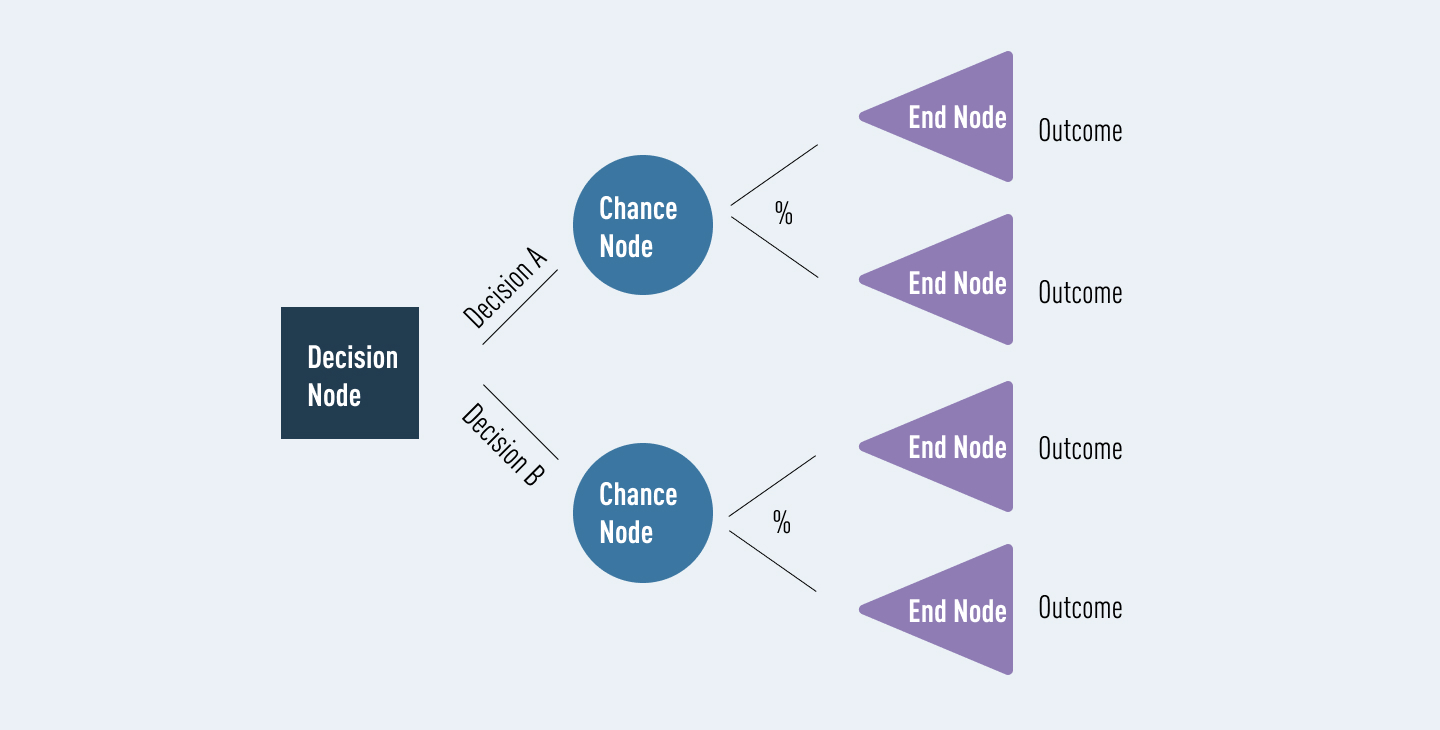

The different components that make up a decision tree: The decision note is represented by a rectangle, chance nodes are represented by circles, and end nodes are represented by triangles

Luckily, a lot of decision tree terminology follows the tree analogy, which makes it much easier to remember! Some other terms you might come across will include:

Root nodes

In the diagram above, the blue decision node is what we call a ‘root node.’ This is always the first node in the path. It is the node from which all other decision, chance, and end nodes eventually branch.

Leaf nodes

In the diagram above, the lilac end nodes are what we call ‘leaf nodes.’ These show the end of a decision path (or outcome). You can always identify a leaf node because it doesn’t split, or branch any further. Just like a real leaf!

Internal nodes

Between the root node and the leaf nodes, we can have any number of internal nodes. These can include decisions and chance nodes (for simplicity, this diagram only uses chance nodes). It’s easy to identify an internal node—each one has branches of its own while also connecting to a previous node.

Splitting

Branching or ‘splitting’ is what we call it when any node divides into two or more sub-nodes. These sub-nodes can be another internal node, or they can lead to an outcome (a leaf/ end node.)

Pruning

Sometimes decision trees can grow quite complex. In these cases, they can end up giving too much weight to irrelevant data. To avoid this problem, we can remove certain nodes using a process known as ‘pruning’. Pruning is exactly what it sounds like—if the tree grows branches we don’t need, we simply cut them off. Easy!

3. An example of a simple decision tree

Now that we’ve covered the basics, let’s see how a decision tree might look. We’ll keep it really simple. Let’s say that we’re trying to classify what options are available to us if we are hungry. We might show this as follows:

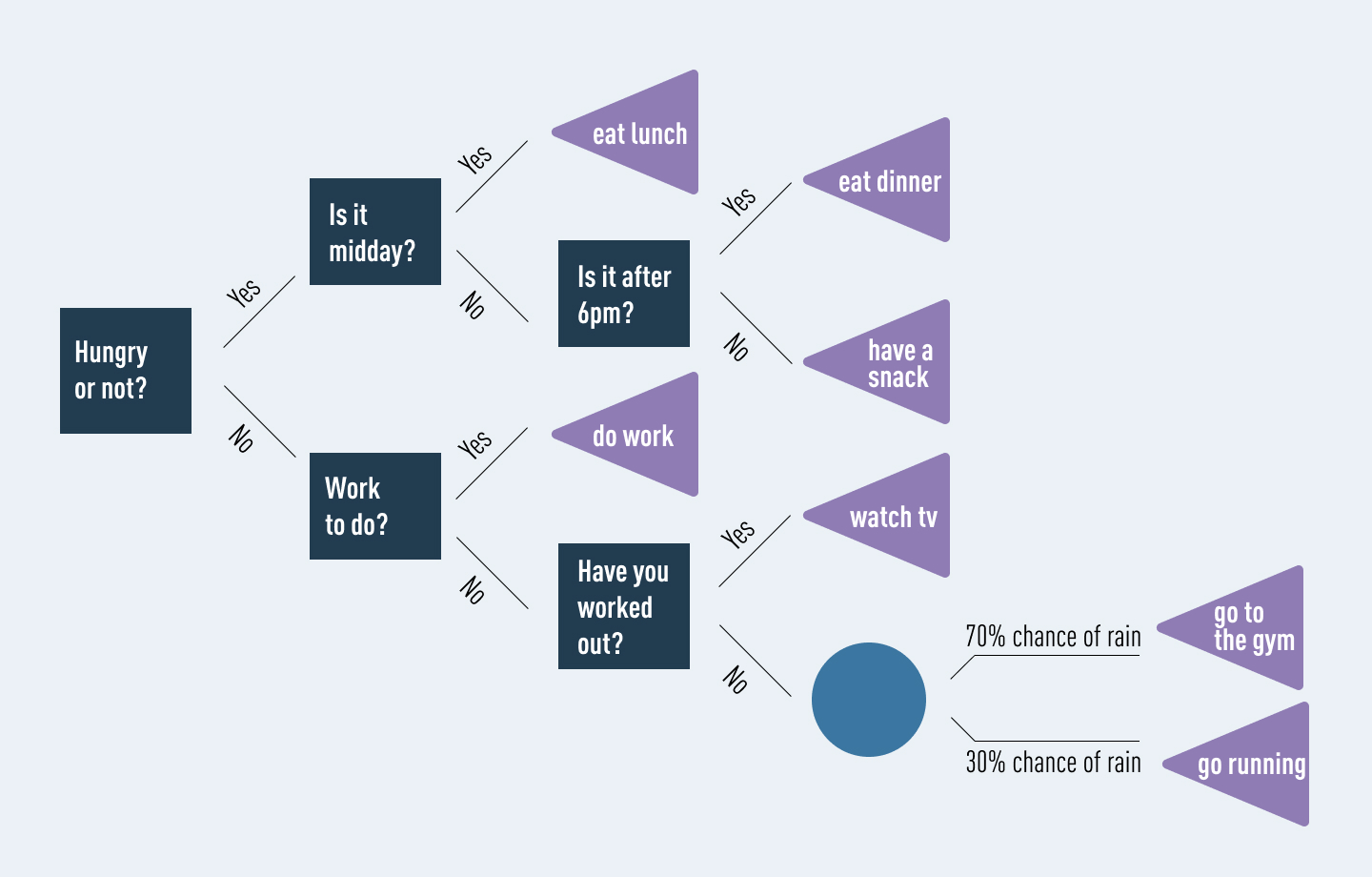

An example of a decision tree showing the possible outcomes you might follow based on whether or not you are hungry

In this diagram, our different options are laid out in a clear, visual way. Decision nodes are navy blue, chance nodes are light blue, and end nodes are purple. It is easy for anybody to understand and to see the possible outcomes.

However, let’s not forget: our aim was to classify what to do in the event of being hungry. By including options for what to do in the event of not being hungry, we’ve overcomplicated our decision tree. Cluttering a tree in this way is a common problem, especially when dealing with large amounts of data. It often results in the algorithm extracting meaning from irrelevant information. This is known as overfitting. One option to fix overfitting is simply to prune the tree:

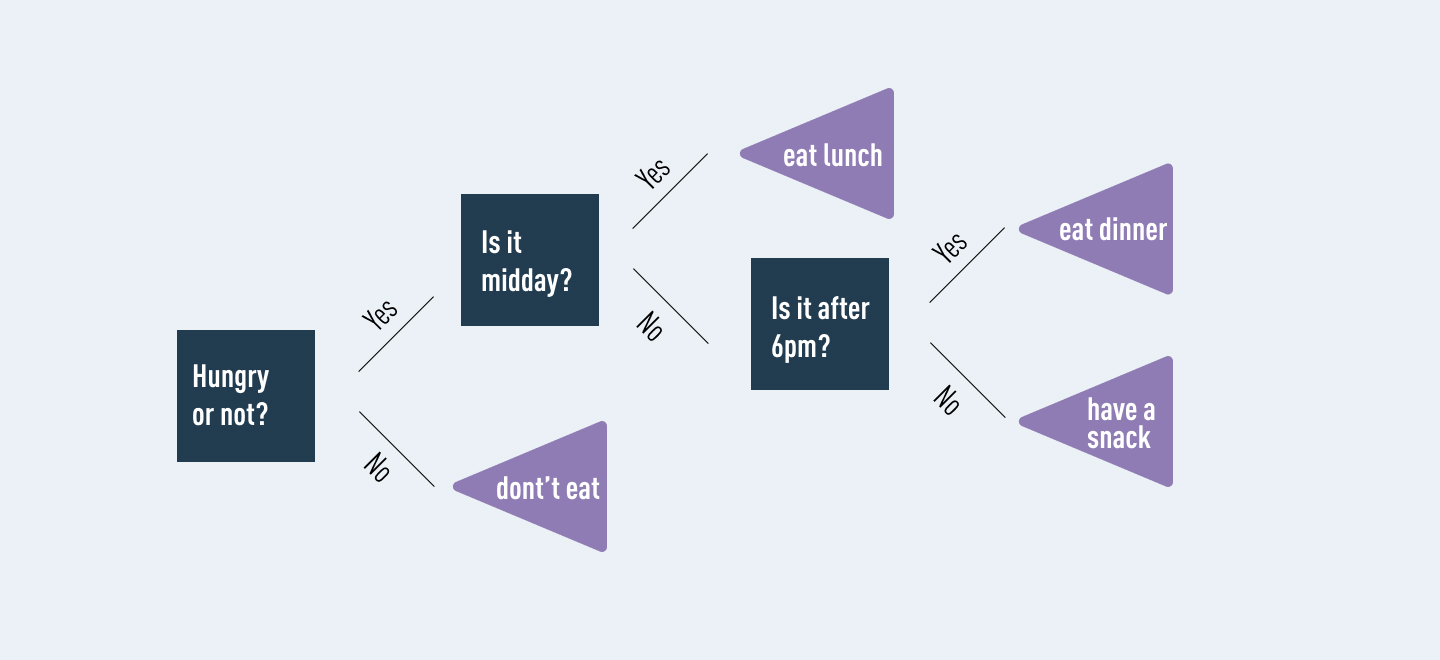

An example of a decision tree which has been "pruned". Pruning is when irrelevant options are removed from the decision tree.

As you can see, the focus of our decision tree is now much clearer. By removing the irrelevant information (i.e. what to do if we’re not hungry) our outcomes are focused on the goal we’re aiming for. This is one example of a pitfall that decision trees can fall into, and how to get around it. However, there are several pros and cons for decision trees. Let’s touch on these next.

4. Pros and cons of decision trees

Used effectively, decision trees are very powerful tools. Nevertheless, like any algorithm, they’re not suited to every situation. Here are some key advantages and disadvantages of decision trees.

Advantages of decision trees

  • Good for interpreting data in a highly visual way.
  • Good for handling a combination of numerical and non-numerical data.
  • Easy to define rules, e.g. ‘yes, no, if, then, else…’
  • Requires minimal preparation or data cleaning before use.
  • Great way to choose between best, worst, and likely case scenarios.
  • Can be easily combined with other decision-making techniques.

Disadvantages of decision trees

  • Overfitting (where a model interprets meaning from irrelevant data) can become a problem if a decision tree’s design is too complex.
  • They are not well-suited to continuous variables (i.e. variables which can have more than one value, or a spectrum of values).
  • In predictive analysis, calculations can quickly grow cumbersome, especially when a decision path includes many chance variables.
  • When using an imbalanced dataset (i.e. where one class of data dominates over another) it is easy for outcomes to be biased in favor of the dominant class.
  • Generally, decision trees provide lower prediction accuracy compared to other predictive algorithms.

5. What are decision trees used for?

Despite their drawbacks, decision trees are still a powerful and popular tool. They’re commonly used by data analysts to carry out predictive analysis (e.g. to develop operations strategies in businesses). They’re also a popular tool for machine learning and artificial intelligence, where they’re used as training algorithms for supervised learning (i.e. categorizing data based on different tests, such as ‘yes’ or ‘no’ classifiers.)

Broadly, decision trees are used in a wide range of industries, to solve many types of problems. Because of their flexibility, they’re used in sectors from technology and health to financial planning. Examples include:

  • A technology business evaluating expansion opportunities based on analysis of past sales data.
  • A toy company deciding where to target its limited advertising budget, based on what demographic data suggests customers are likely to buy.
  • Banks and mortgage providers using historical data to predict how likely it is that a borrower will default on their payments.
  • Emergency room triage might use decision trees to prioritize patient care (based on factors such as age, gender, symptoms, etc.)
  • Automated telephone systems guiding you to the outcome you need, e.g. ‘For option A, press 1. For option B, press 2’, and so on.

As you can see, there many uses for decision trees!

6. Decision trees in summary

Decision trees are straightforward to understand, yet excellent for complex datasets. This makes them a highly versatile tool. Let’s summarize:

  • Decision trees are composed of three main parts—decision nodes (denoting choice), chance nodes (denoting probability), and end nodes (denoting outcomes).
  • Decision trees can be used to deal with complex datasets, and can be pruned if necessary to avoid overfitting.
  • Despite having many benefits, decision trees are not suited to all types of data, e.g. continuous variables or imbalanced datasets.
  • They are popular in data analytics and machine learning, with practical applications across sectors from health, to finance, and technology.

Now you’ve learned the basics, you’re ready to explore this versatile algorithm in more depth. We’ll cover some useful applications of decision trees in more detail in future posts.
